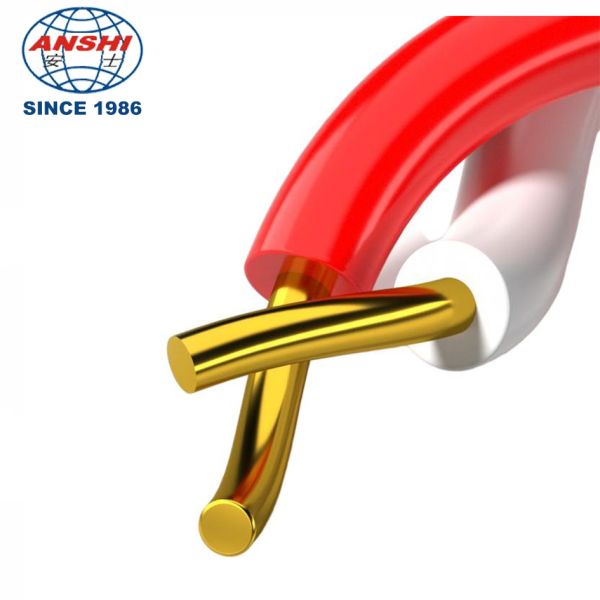

White Red Telephone Cable 2 Core 0.5mm PE Insulated Wire

Brand Name : ANSHI

Model Number : XL-4023C-2C

Certification : ISO 90001, SGS

Place of Origin : ZHEJIANG, CHINA

MOQ : Can Discuss

Price : Negotiable

Supply Ability : 50000 ROLL per Month

product : Telephone Cable 2 Core

Material : PE + Bronze

Color : White+Red / White+Blue / White+Black / White+ Orange / White + Green

Type : 2 Core

Size : 0.4/0.5/0.6mm

Application : Telephone Systems. MDF

Contact Now

Indoor White Red Telephone Cable 2 Core 0.5mm PE Insulated Jumper Wire


Different Meter Can Choose

100/200/300/500/1000Meter (1000 Meter can use Reel Package)

White Red Telephone Cable 2 Core 0.5mm PE Insulated Wire


The jumper wires are used for interconnection between terminal blocks at main distribution frames (MDF), cross connection cabinets (CCP) and distribution frames or boxes.

Conductors
Solid annealed tinned copper 0.4/0.5/0.6/0.8mm as per IEC 60228 Class 1

Insulation
PE

Twisted Pairs
Insulated conductors are twisted into pairs with varying lays to minimize crosstalk

Electrical & Mechanical Properties

NOMINAL CONDUCTOR DIAMETER MM 0.5 0.6 0.8
CONDUCTOR SIZE MM2 0.196 0.283 0.5
MAXIMUM CONDUCTOR RESISTANCE @20°C Ω/KM 98 66 35
MINIMUM INSULATION RESISTANCE @500V DC MΩ.KM 50 50 50
NOMINAL INSULATION THICKNESS MM 0.225 0.225 0.275
NOMINAL INSULATED CONDUCTOR DIAMETER MM 0.95 1.05 1.35


Color Code
Standard colour code is per IEC 60189-1

Dimensions And Weight

CABLE CODE NUMBER OF WIRES NOMINAL INSULATION
THICKNESS MM		 MAXIMUM OVERALL DIAMETER
MM		 NOMINAL WEIGHT KG/KM
0.5mm Conductor, 0.95mm Insulated Wire
Y-1W05 1 0.225 1.25 2.5
Y-2W05 2 0.225 1.95 5.0
Y-3W05 3 0.225 2.25 7.5
Y-4W05 4 0.225 2.40 10.0
Y-5W05 5 0.225 2.60 12.5
0.6mm Conductor, 1.05mm Insulated Wire
Y-1W06 1 0.225 1.45 3.0
Y-2W06 2 0.225 2.15 6.0
Y-3W06 3 0.225 3.0 9.0
Y-4W06 4 0.225 3.4 12.0
0.8mm Conductor, 1.35mm Insulated Wire
Y-1W08 1 0.275 2.05 5.8
Y-2W08 2 0.275 2.75 11.6
Y-3W08 3 0.275 3.7 17.4
Y-4W08 4 0.275 4.2 23.2


Mechanical and Thermal Properties
Temperature range during operation (fixed state): -30°C - +70°C
Temperature range during installation (mobile state): -20°C - +50°C
Minimum bending radius: 7.5 x Overall Diameter

White Red Telephone Cable 2 Core 0.5mm PE Insulated Wire

White Red Telephone Cable 2 Core 0.5mm PE Insulated Wire
